QS25 Ultrasonic Cleaning Bath

36 724kr (exkl.moms)

SKU: F00245 Category:

Description

The QS25 ultrasonic cleaning bath is our largest Q series machine, it offers heated, repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation. The QS25 has been designed with larger components in mind to offer superior cleaning performance.

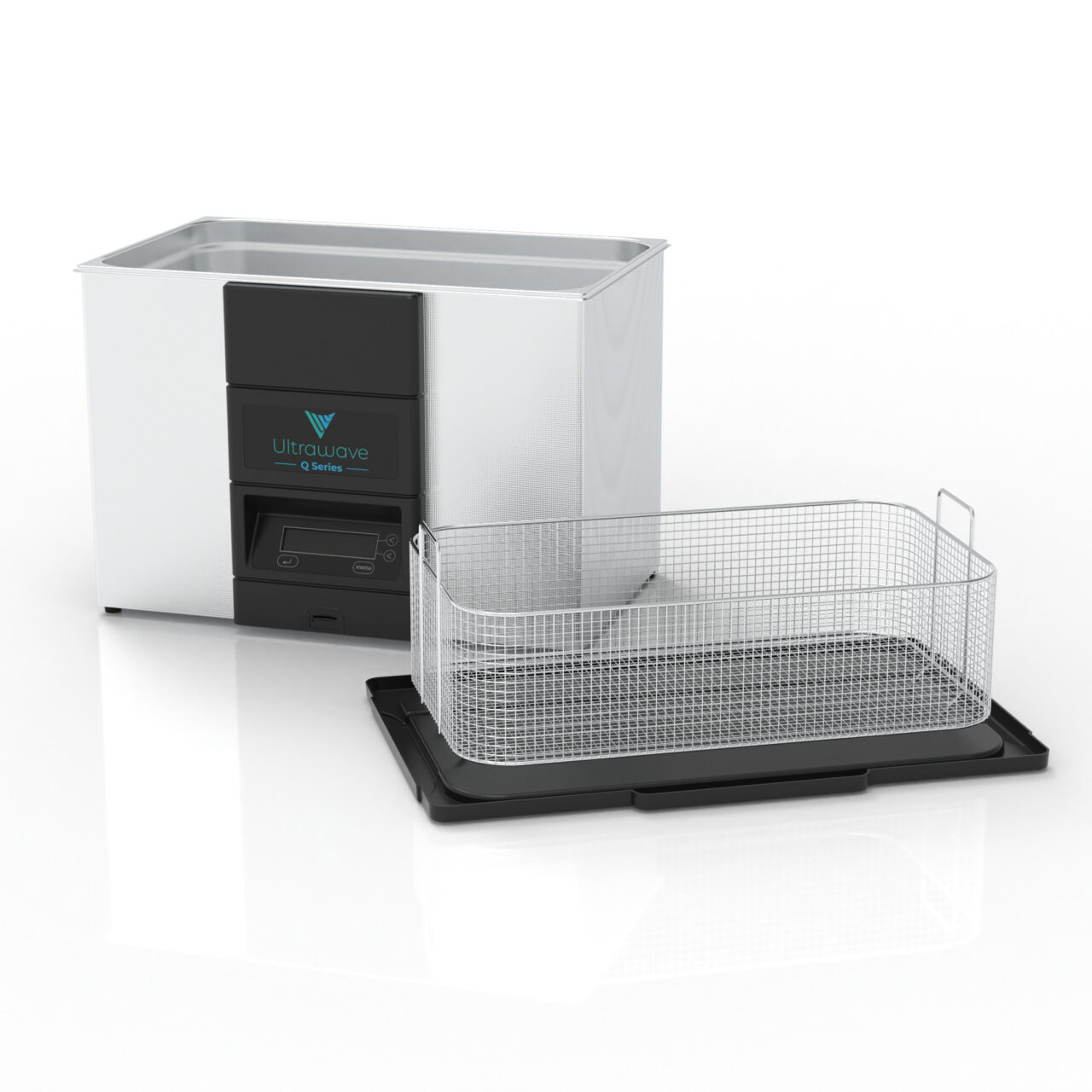

The QS25 is easily operated digital time and temperature control interface, with a 25 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid which also doubles as a drip tray.

It offers full cleaning cycle traceability by storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance and regulation obligations.

For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.



Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745

Specifications

QS25 Product Specification.pdf

Overall Dimensions
550 x 490 x 365mm (W x D x H)
Internal Tank Dimensions
505 x 300 x 200mm (W x D x H)
Internal Basket Dimensions
465 x 265 x 160mm (W x D x H)
Maximum Capacity
Working Capacity
28 Litres
25 Litres
Construction
304 stainless steel tank
Control
Digital control
Temperature (Ambient to 70°)
Time (0 to 99 minutes)
Operating Features
Degas mode
Digital traceability
Drain valve
Energy saving mode
Fluid level protection
Frequency Leap Technology
Heated
Power adjust
Ultrasonic Power
400W
Operating Frequency
32 to 38kHz
Heating Power
650W
Mains Connection
230VAC
