QS12 Ultrasonic Cleaning Bath

28 300kr (exkl.moms)

SKU: F00243 Category:

Description

The QS12 ultrasonic cleaning bath offers heated, repeatable and traceable cleaning performance for a wide range of industries. Incorporating Frequency Leap technology, the Q-Series combines excellent ultrasonic cleaning efficiency with ease of operation. The QS12 has been designed with deeper components in mind to offer superior cleaning performance.

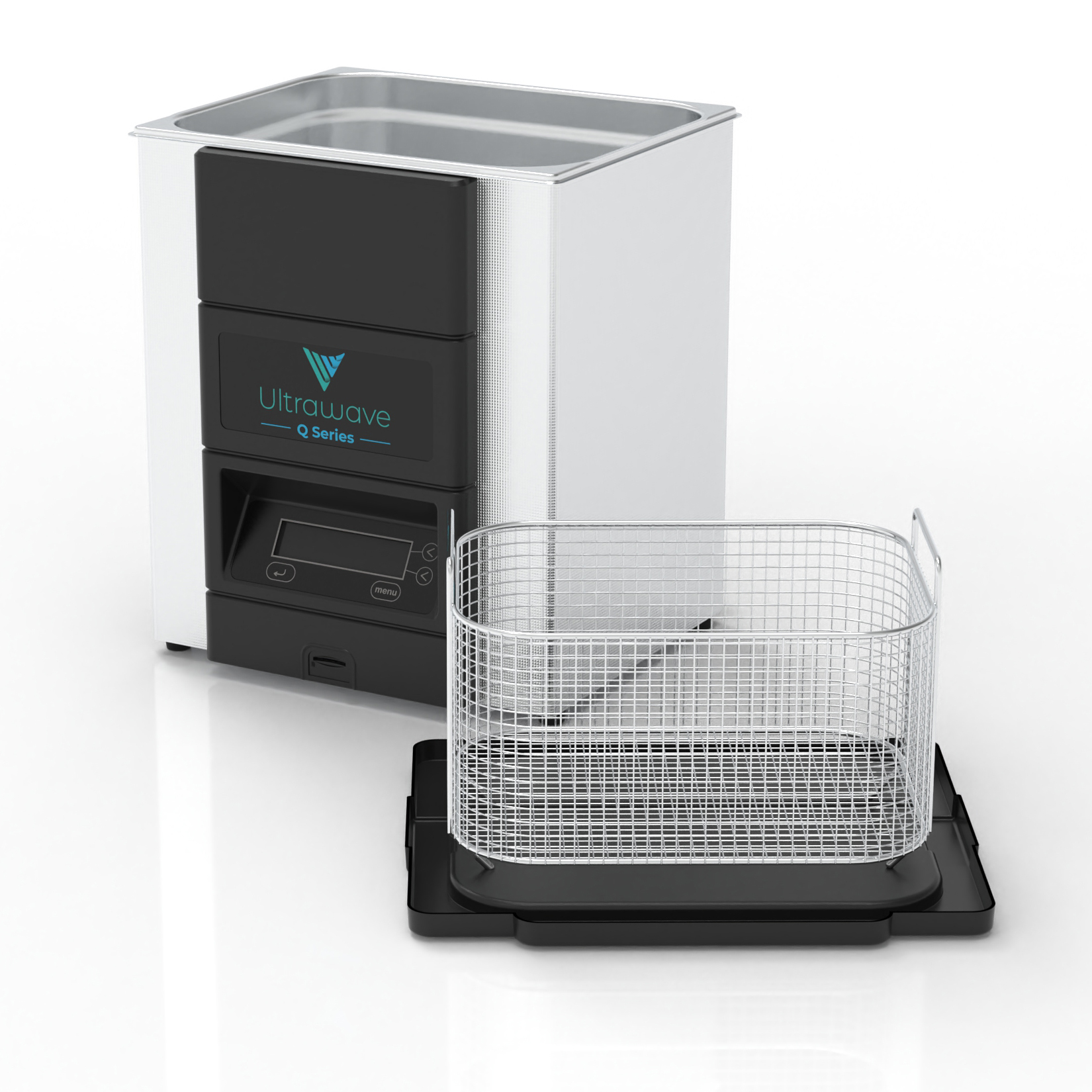

The QS12 is easily operated digital time and temperature control interface, with a 12.5 litre working capacity tank and is supplied complete with a stainless steel basket and a plastic lid which also doubles as a drip tray.

It offers full cleaning cycle traceability by storing all cleaning cycle information onto an SD card that can be removed and transferred to a computer by using the provided software. All data can then be stored or printed for compliance and regulation obligations.

For the best results use an Ultrawave cleaning detergent that has been specially formulated for your application.



Q-Series Ultrasonic Cleaners are Class I Medical Devices, compliant to MDR (EU) 2017/745

Specifications

QS12 Product Specification.pdf

Overall Dimensions
345 x 435 x 365mm (W x D x H)
Internal Tank Dimensions
300 x 240 x 200mm (W x D x H)
Internal Basket Dimensions
260 x 210 x 160mm (W x D x H)
Maximum Capacity
Working Capacity
14 Litres
12.5 Litres
Construction
304 stainless steel tank
Control
Digital control
Temperature (Ambient to 70°)
Time (0 to 99 minutes)
Operating Features
Degas mode
Digital traceability
Drain valve
Energy saving mode
Fluid level protection
Frequency Leap Technology
Heated
Power adjust
Ultrasonic Power
200W
Operating Frequency
32 to 38kHz
Heating Power
300W
Mains Connection
230VAC
